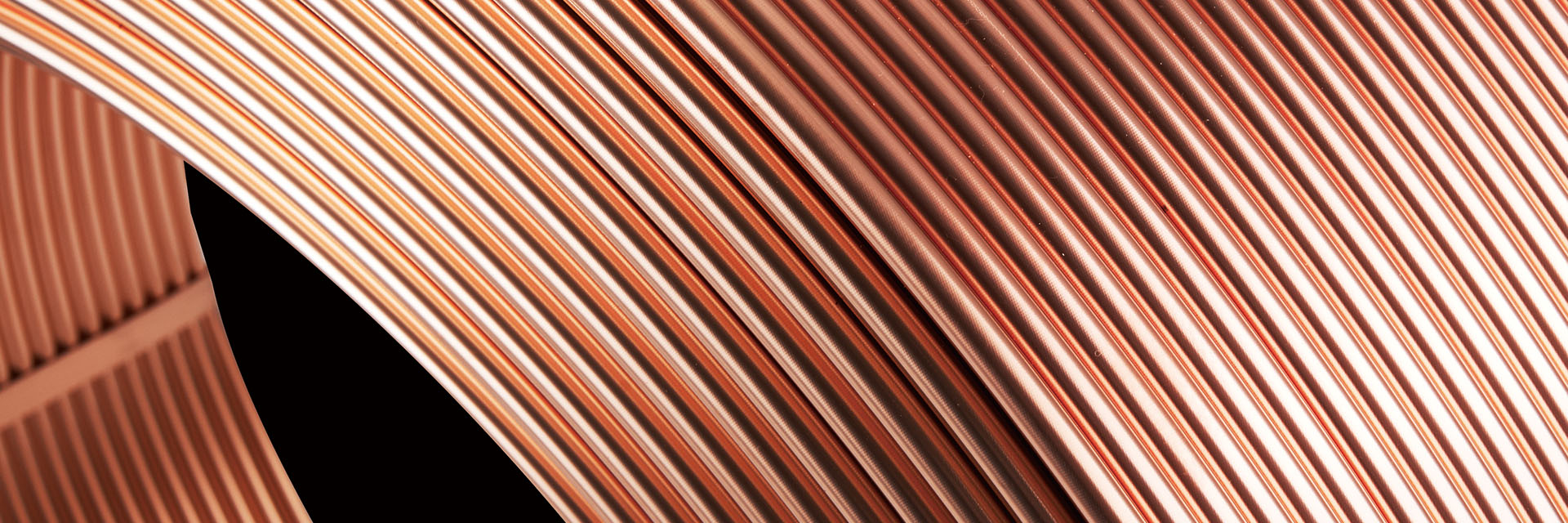

水平复绕盘管
我司生产的水平复绕盘管,主要应用于空调与制冷行业的热交换器及管路系统连接。
水平复绕盘管产品认证



水平复绕盘管性能优势
- 内外表面光洁、光亮
- 组织均匀致密
- 尺寸精度高
- 易焊接、加工成型性好
水平复绕盘管应用领域

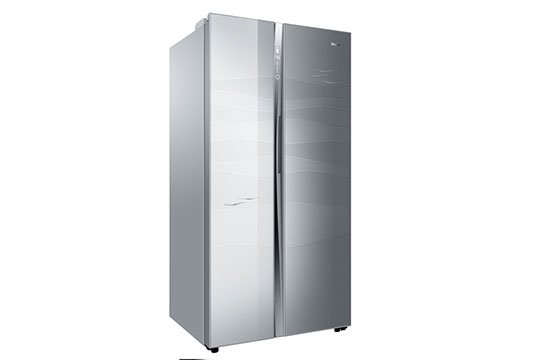

冰箱制冷部件

空调冷凝器

空调蒸发器

汽车空调

热水器
水平复绕盘管性能参数资料下载
Thickness | 0.25mm | 0.28mm | 0.30mm | 0.35mm | 0.40mm | 0.46mm | 0.56mm | 0.60mm | 0.64mm | 0.71mm | 0.76mm | 0.81mm | 0.89mm | 1.00mm | 1.07mm | 1.14mm | 1.22mm | 1.27mm | 1.50mm | 2.00mm |
3.80 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||||||||||
4.00 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||||||||
4.76(3/16in) | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||||||
5.00 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||||
6.00 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ||||||
6.35(1/4in) | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||
7.00 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||
7.94(5/16in) | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ||
8.00 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ||
9.00 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ||
9.52(3/8in) | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ||
10.00 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ||
12.00 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ||
12.70(1/2in) | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||
14.00 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ||||
15.00 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ||||
15.88(5/8in) | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||
16.00 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||
18.00 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||||
19.05(3/4in) | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||||||
20.00 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||||||
22.00 | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | |||||||||||
22.22(7/8in) | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ | ◎ |
相关产品

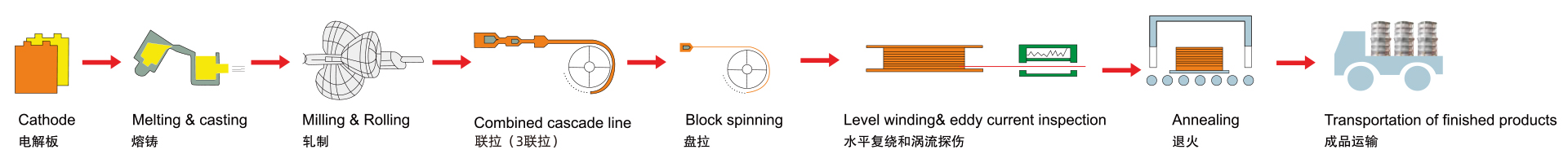

水平复绕盘管生产工艺流程
常规生产工艺如下:
电解板 → 熔铸 → 轧制 → 联拉(3连拉)→ 盘拉 → 水平复绕和涡流探伤 → 退火 → 成品运输
水平复绕盘管执行标准
产品执行标准:GB/T 17791-2007、ASTM B280、JIS H3300、AS/NZS 1571:1995、AS 1432、EN12735-2
水平复绕盘管生产设备

水平连铸炉

铣面机-铜管

三辊行星轧机

盘拉机

复绕机

智能仓库

SCADA数据采集与监视控制系统
