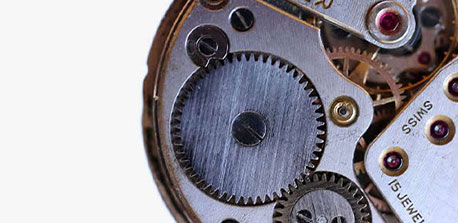

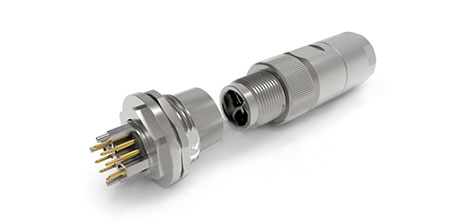

JinTian is a big and responsible bronze rod supplier in China. We can provide you with product range: (1) Status: Y, M, Y4, Y2, Y1; (2) Wire production range: φ2.0mm-φ14.0mm; (3) Bar production range: φ2.0mm-φ50.0mm. The tin bronze produced by our company is suitable for spring contacts with good electrical conductivity, aviation RF connectors, gears for precision instruments. We have high-quality bronze rod and other copper rods for sale. No Matter when you need phosphor bronze rod, we can provide you the product at a satisfying price.
High-quality strength and hardness
Good wear resistance
Good flexibility
No sparks, corrosion resistance, non-magnetic
Good cold workability
Excellent plating and welding performance
Alloy Grade | Cu | Pb | AI | Fe | Sn | Zn | P | impurity |
| QSn6.5-0.1 | REM | ≤0.02 | ≤0.002 | ≤0.05 | 6.0~7.0 | ≤0.3 | 0.10~0.25 | ≤0.4 |
| QSn6.5-0.4 | - | ≤0.02 | ≤0.002 | ≤0.02 | 6.0~7.0 | ≤0.3 | 0.26~0.40 | ≤0.4 |
| QSn7-0.2 | - | ≤0.02 | ≤0.01 | ≤0.05 | 6.0~8.0 | ≤0.3 | 0.10~0.25 | ≤0.45 |
| QSn5-0.2 | - | ≤0.05 | – | ≤0.1 | 4.2~5.8 | ≤0.3 | 0.03~0.35 | ≤0.95 |
| C54400 | - | 3.0-4.0 | – | ≤0.1 | 3.5~4.5 | 1.5~4.5 | 0.01~0.5 | – |
The production process is as follows:
Q / JTTY02-2016, etc.
