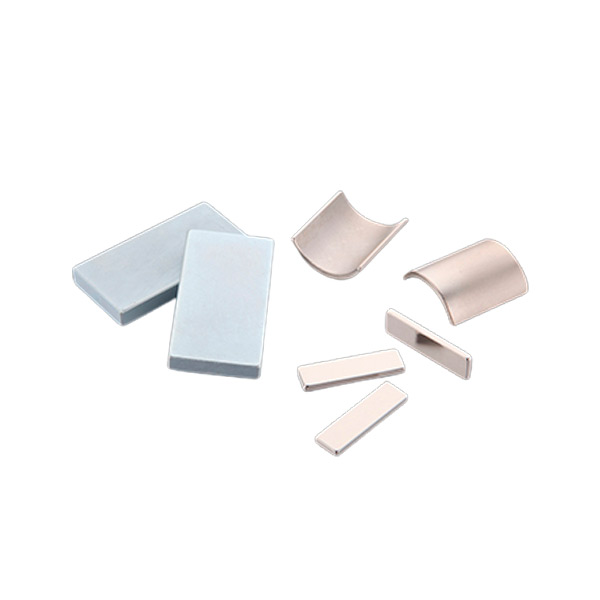

Magnetic Assembly

Ketian Magnet has accumulated rich experience in magnetic steel components, and can provide customers with value-added services such as the bonding and assembly of magnetic steel and magnetic steel, magnetic steel and other components. At present, permanent magnet motor assembly is widely used in wind power generation, new energy vehicles, industrial motors and other fields, and are well received and trusted by customers. We also provide other magnent series for sale such as high and low grade magnent.

Products

Copper Tube 
- By Types 
  -  Inner-grooved Tube
  -  Level Wound Tube
  -  Pancake Coil
  -  Insulated Copper Tube
- By Application 
  -  Air Conditioning Straight Tube
  -  Copper Water Tube
Copper Fittings 
Copper Plate & Sheet 
- Lead Brass Plate
Copper Strip & Roll 
Copper & Brass & Bronze Rod & Wire 
Copper Wire 
Copper Busbar 
Enameled Copper Wire 
NdFeB Permanent Magnet 
Brass Valves & Pipe Fitting 
- Brass Ball Valve 
  -  Brass Mini Ball Valve
  -  Brass Lockable Ball Valve JKL-279
  -  Brass Ball Valve JKL-9267
  -  Brass Ball Valve JKL-5262
  -  Brass Ball Valve with Strainer JKL-261
- Brass Gate Valve 
  -  Brass Gate Valve JKL-5117
  -  Brass Gate Valve JKL-5114
  -  Brass Gate Valve JKL-167
  -  Brass Lockable Gate Valve JKL-9118
  -  Brass Magnetic Lockable Gate Valve JKL-9119
  -  Brass Check Gate Valve JKL-9169
- Brass Check Valve 
  -  Brass Spring Check Valve
  -  Brass Swing Check Valve
  -  Brass Vertical Check Valve JKL-5425
- Brass Float Ball Valve 
  -  Brass Float Ball Valve JKL-5901
  -  Brass Float Ball Valve JKL-5906
- Brass Angle Valve 
  -  Brass Angle Valve(JKL-SJ-806)
- Brass Stop Valve 
  -  Brass Stop Valve JKL-317
  -  Brass Stop Valve JKL-318
  -  Brass Stop Valve JKL-385
  -  Brass Lockable Stop Valve JKL-316
- Brass Strainer 
  -  Brass Strainer JKL-607
- Brass Pressure Reducing Valve 
  -  Brass Pressure Reducing Valve JKL-737
- Brass Manifold 
  -  Integrated Brass Manifold
- Brass Bibcock 
  -  Brass Bibcock JKL-501
  -  Brass Bibcock JKL-502
  -  Brass Bibcock JKL-5541
- Brass Gas Valve 
  -  Brass Gas Ball Valve JKL-R60001
  -  Brass Gas Ball Valve JKL-R64001
- Brass Flanged Valve 
- Brass Fittings 
  -  Brass Fittings(JKL-4602)
Coper Wire Size 
- 3mm Wire
- 8mm Wire

Magnetic Motor Assembly Certifications

Magnetic Motor Assembly Performance Advantages

Good corrosion resistance

Magnetic Assembly Application Fields

Industrial Motor
New Energy Vehicle Drive Motor

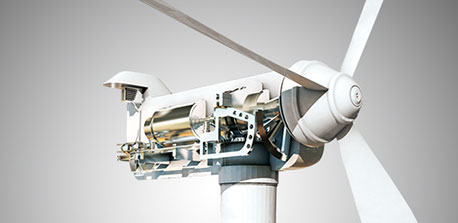

Wind Power

Magnetic Assembly Performance Parameter

Coating Type	Color	Thickness/um	SST/h	PCT/h	Working Temp/℃	Performance features
Blue Zn	Blue/White	5-10	≥48	–	＜160	Medium corrosion resistance performance
Color Zn	Multiple colors	5-10	≥72	–	＜160	Medium corrosion resistance performance
NICUNI	Silver white	10-30	≥72	≥96	＜200	High corrosion resistance, thermal resistance and moisture resistance
PVD Aluminium	Silver white	5-25	≥96	≥240	＜390	High corrosion resistance and adhesiveness
Phosphate	–	–	–	–	＜250	Low cost, low corrosion resistance performance
Epoxy	Black/Grey	10-30	≥480	≥96	＜180	High corrosion resistance and insulation performance
Multi-layer coating	–	–	≥1000	≥480	–	Excellent corrosion resistance performance

Notes

This performance might vary according to different dimension of product.
Multi-layer coating is a combination of different type of coatings, and its color,thickness and working temperature might varies from different combinations.
PCT test conditions: 121 celcius degrees, 100% humidity,2atms HAST test condition:132 celcius dergees, 95% humidity,2.7atms(mainly for evaluation of material weight loss)
HAST (Highly Accelerated Stress Test) condition: 132 celcius degrees, 95% humidity,2.7atms(mainly for evaluation of material weight loss)
